Azimut Grande Trideck 2021 For Sale

United Kingdom

Not ratedfrom 0 reviews
0.0/5
0% customers recommend
Luxury Yacht

Watercraft Type

Luxury Yacht

Model

Azimut Grande Trideck

Build Year

2021

Condition

Fully Operational

Description

Trideck - Threedecks + One

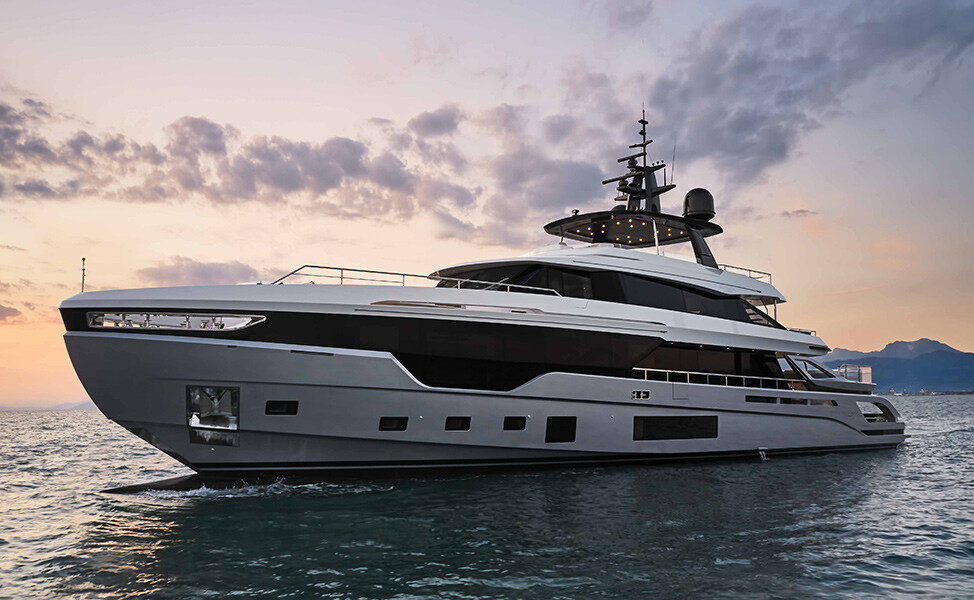

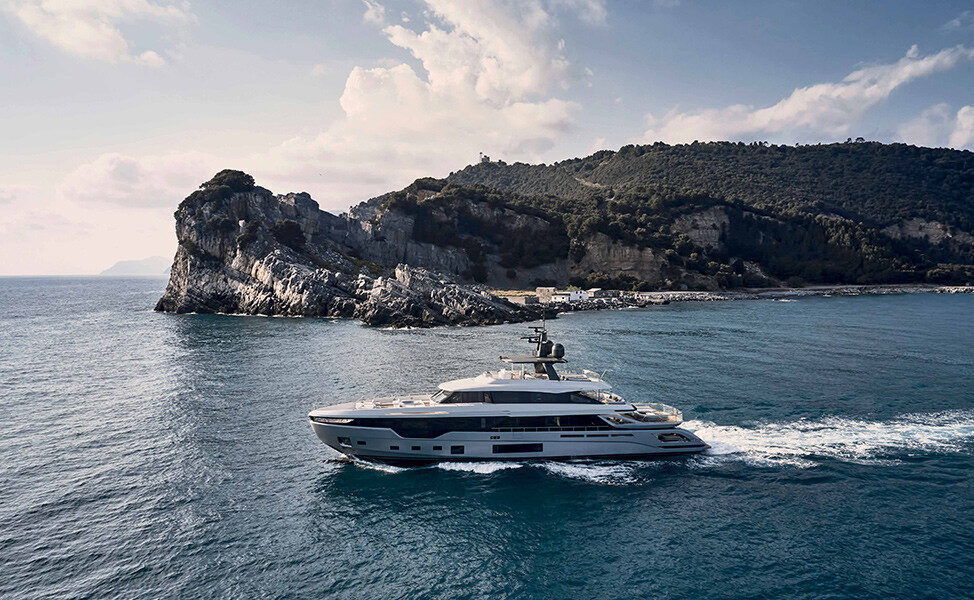

The very quintessence of innovation, Azimut Yachts’ first ever Trideck superyacht defies the accepted norms of boat design to create extraordinary new spaces that redefine the concept of onboard living.

With dimensions like never before and a design that breaks all the rules, the Grande Trideck is the magnificent new Azimut Yachts flagship.

FEATURES

THREE DECKS + ONE

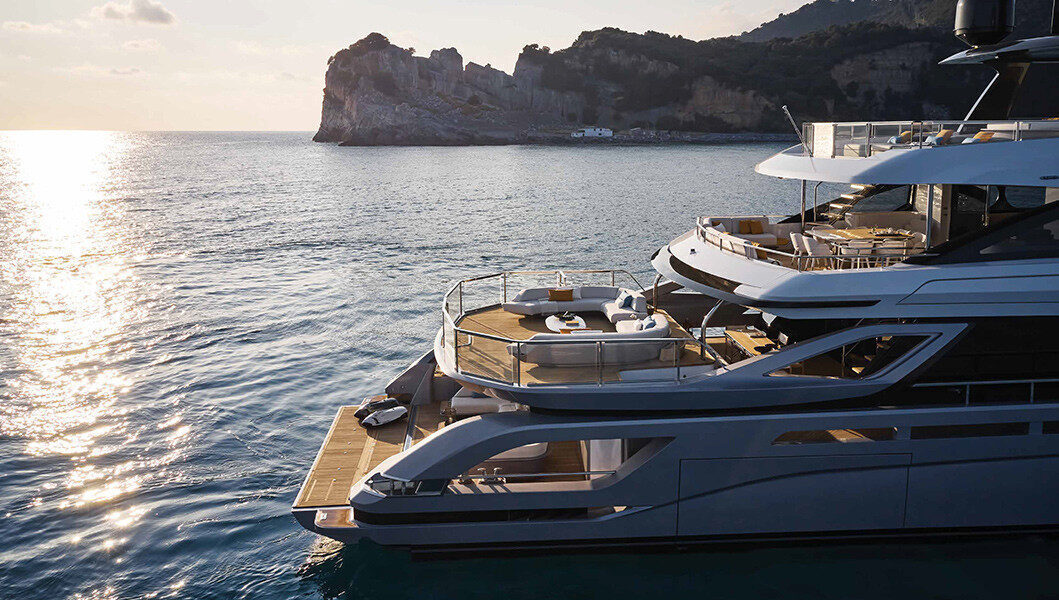

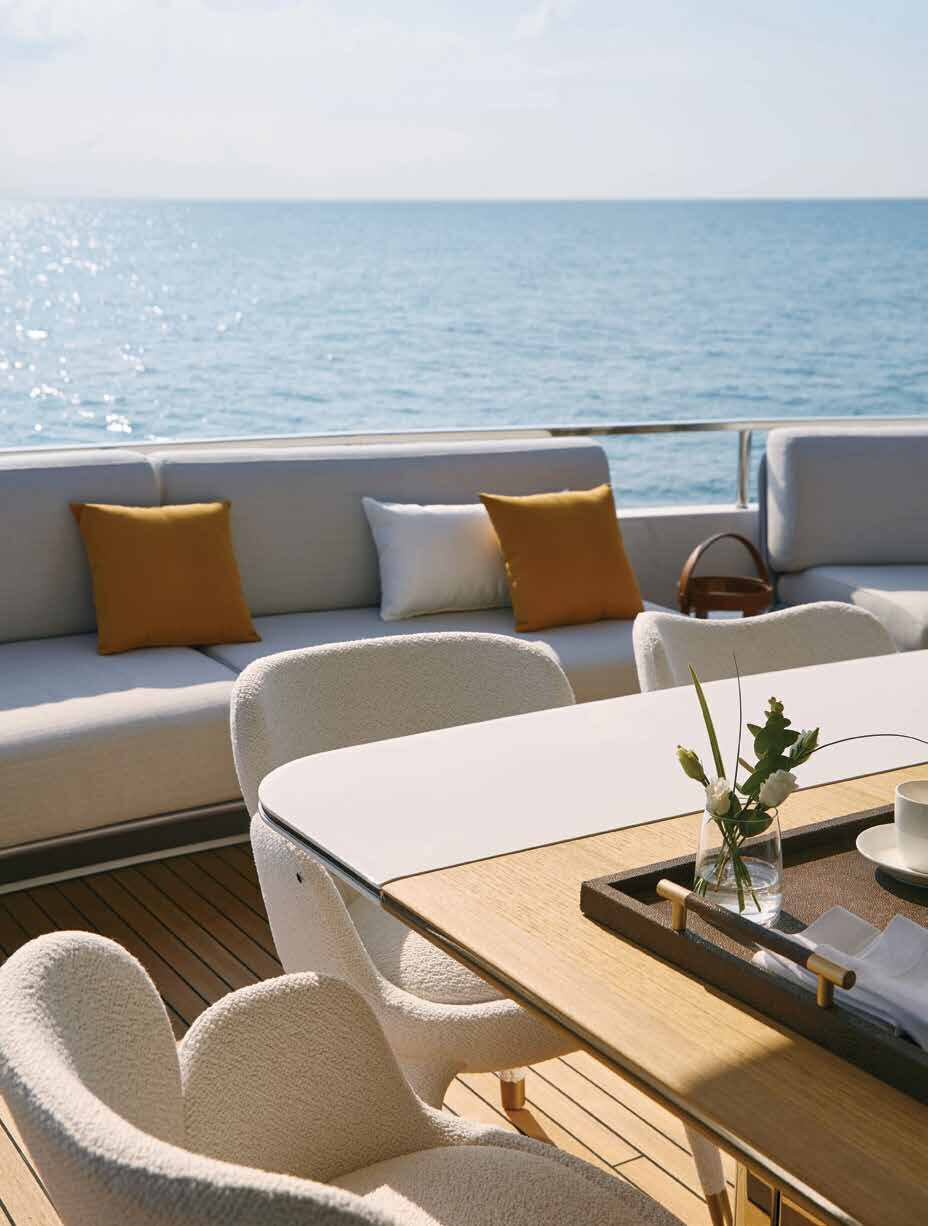

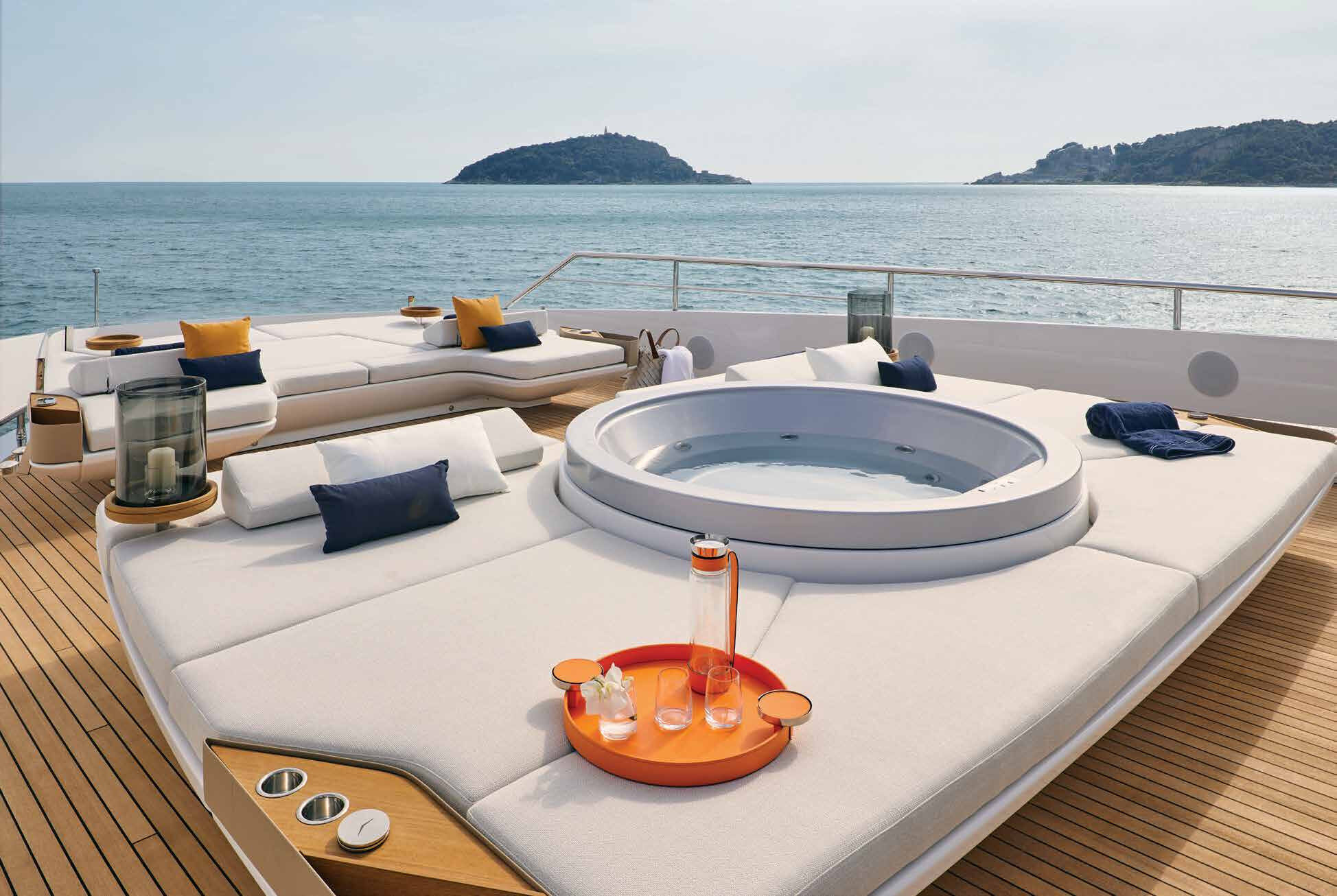

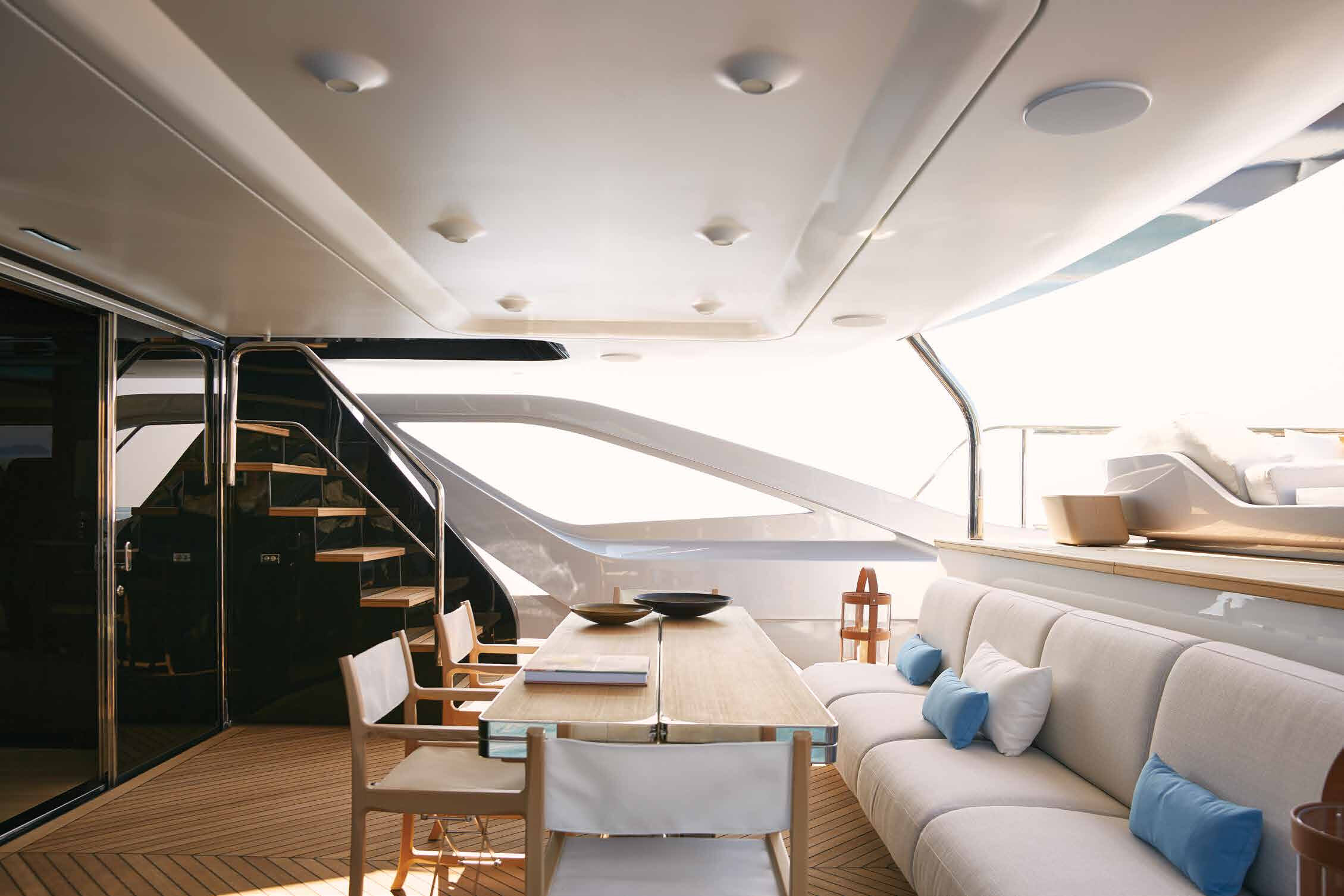

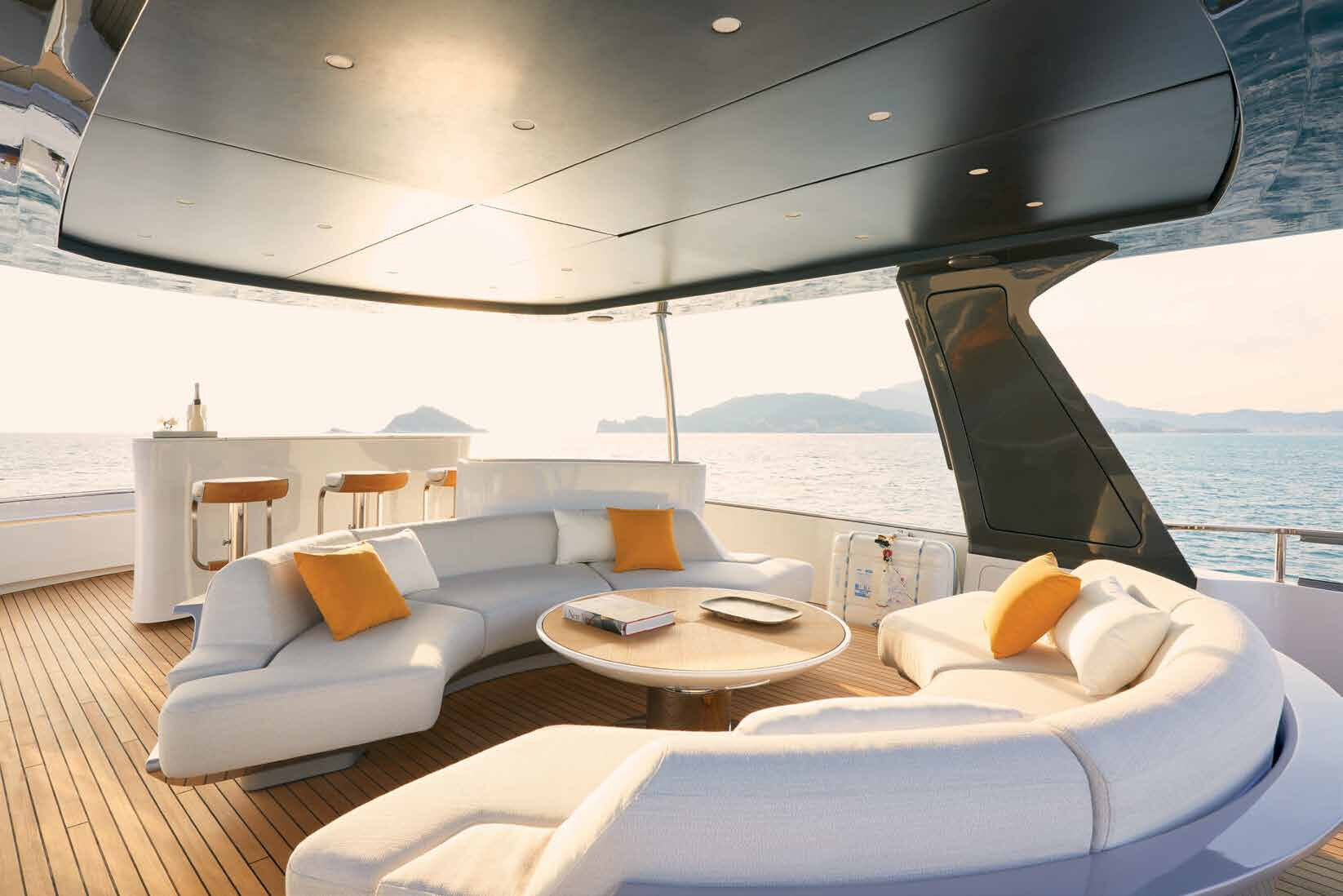

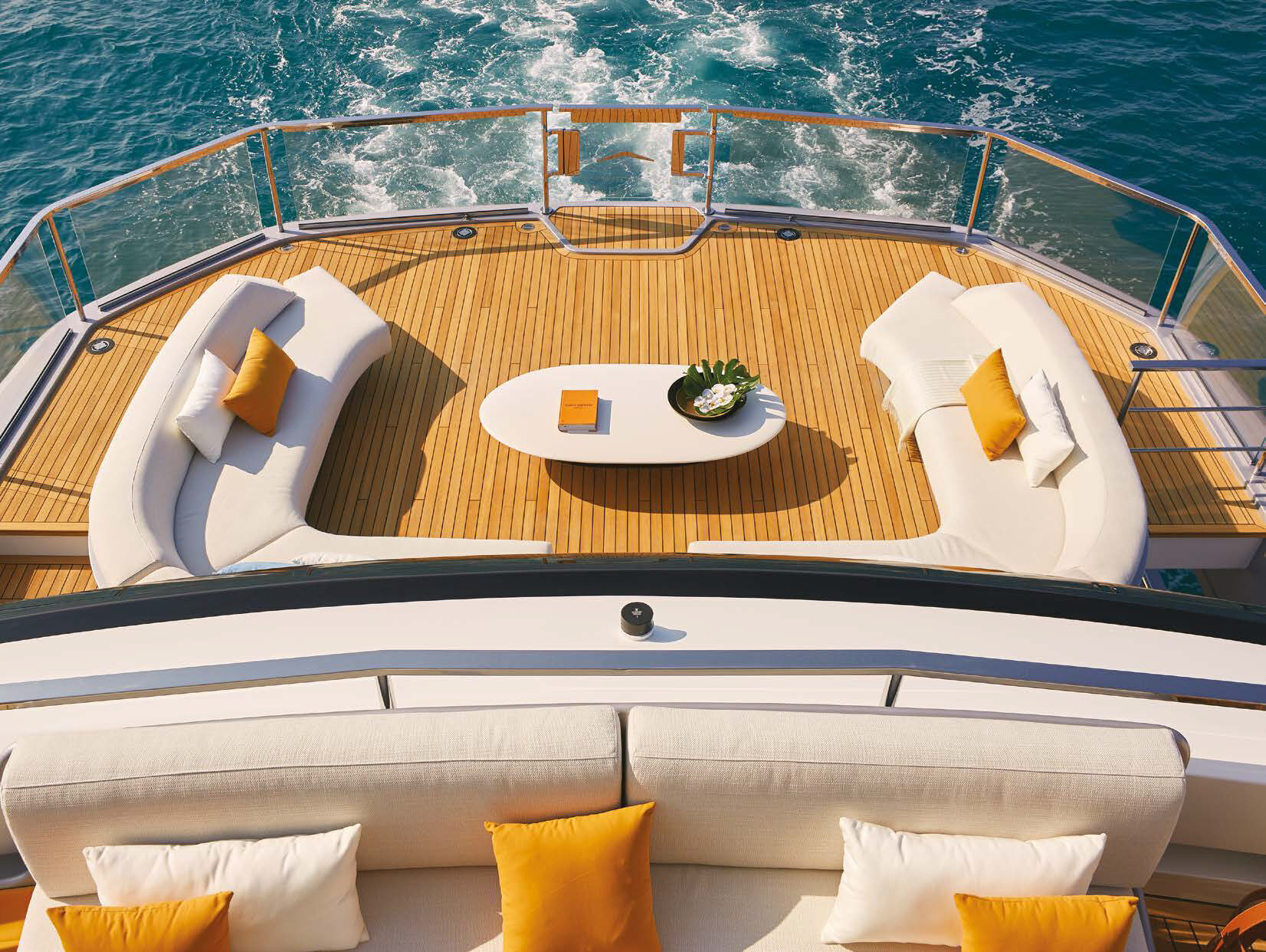

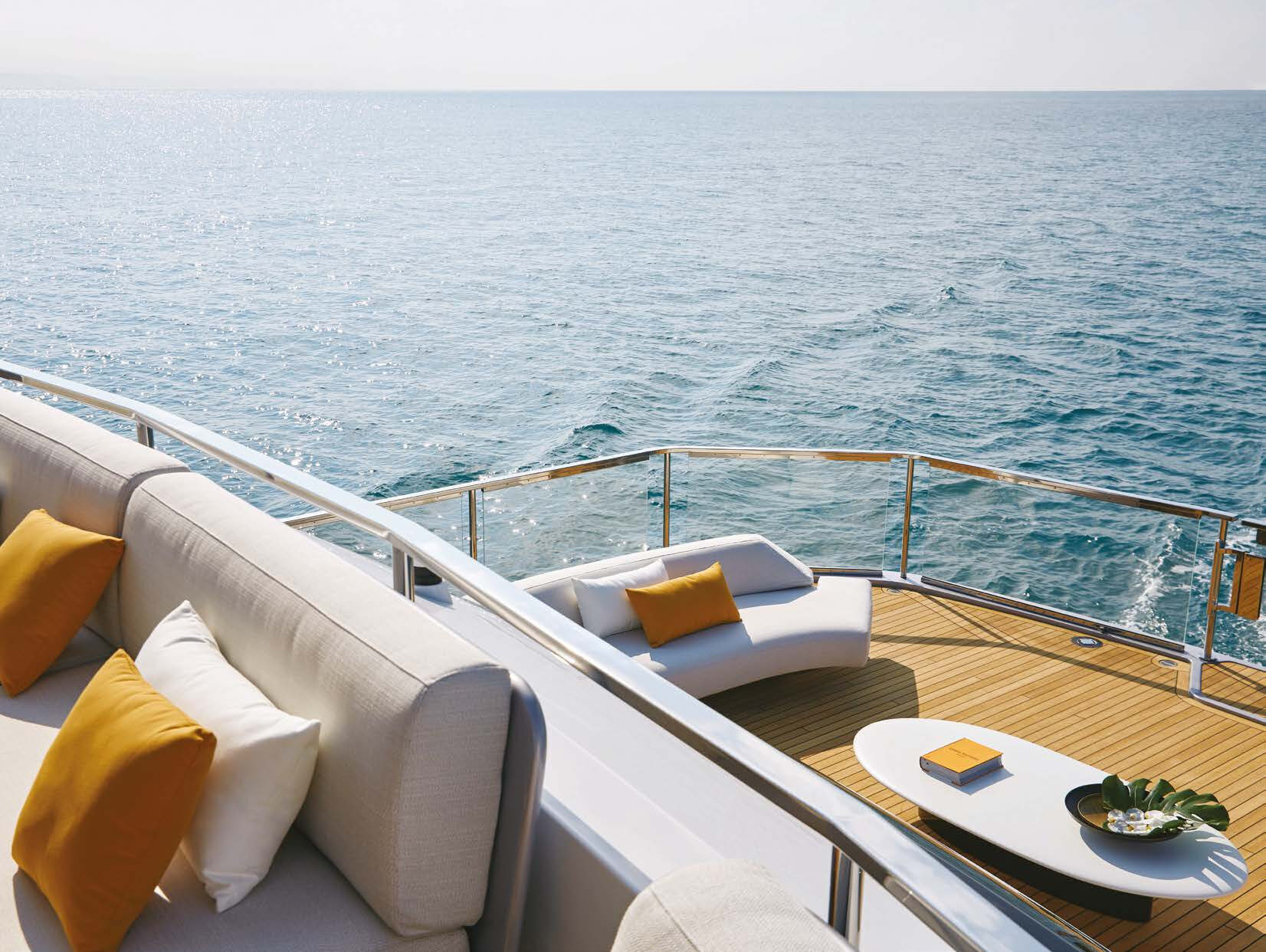

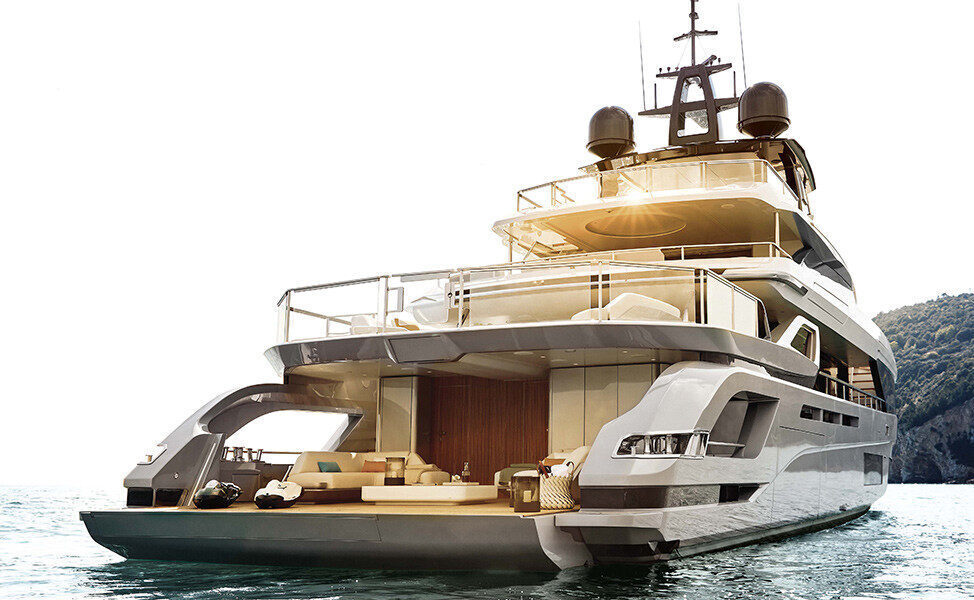

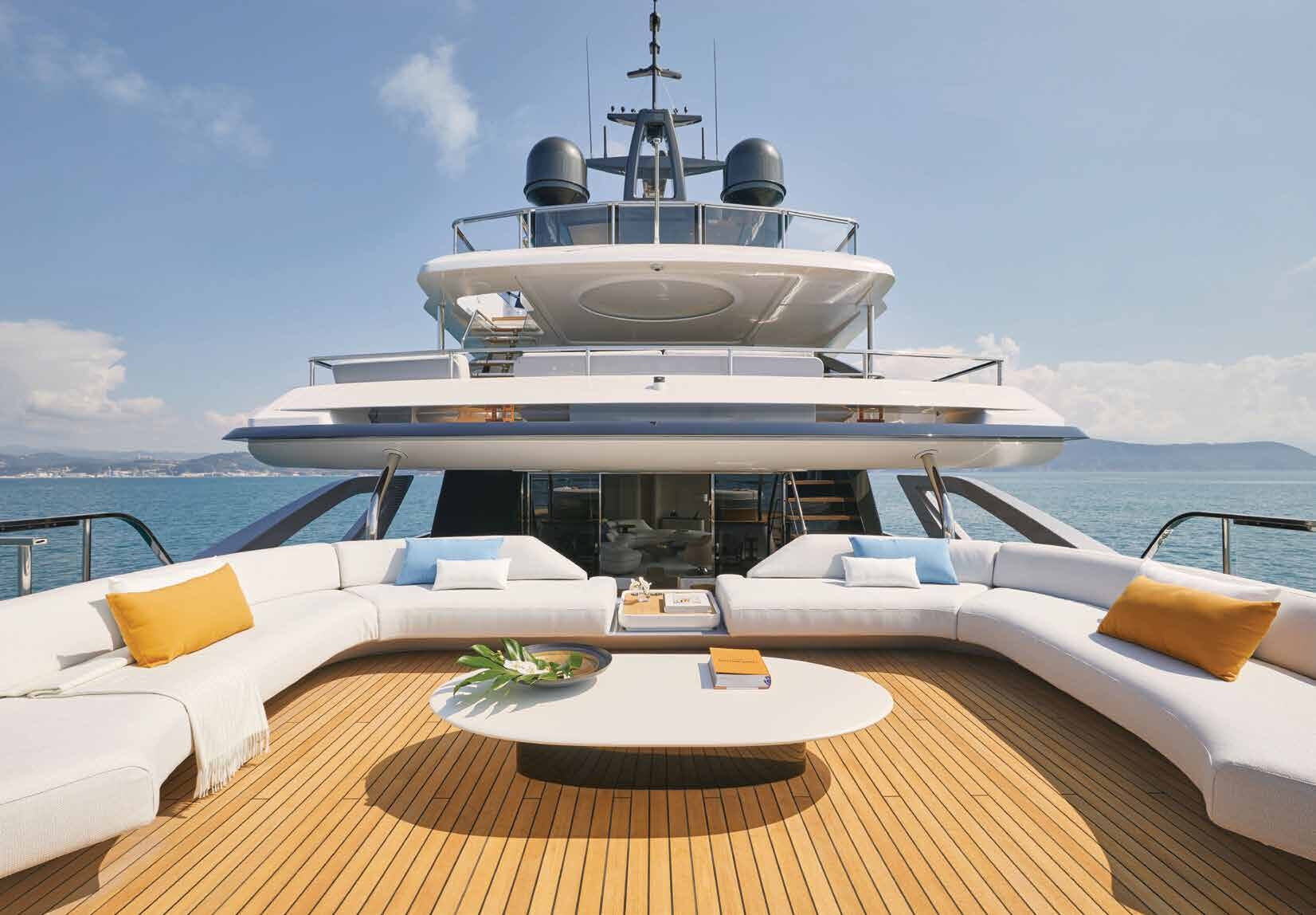

Azimut Grande Trideck features a new living area never seen before on a yacht this size, the Sea View Terrace. The Sea View Terrace is an aft raised “mezzanine” deck, which is the latest addition to the traditional triple-decker. Thanks to this layout innovation, Grande Trideck offers four terraces: the sundeck, perfect for secluded sunbathing, then the upper deck, where we find the main Outdoor Dining Area, next, the new Sea View Terrace, floating just a few meters above the water, and down below, the full-height beach area. Furthermore, one additional benefit of the aft raised “mezzanine” deck is the creation a Private Patio at the entrance to the salon, perfect to enjoy a complete privacy.

SECOND GEN D2P HULL

The second generation D2P_Displacement to Planing® hull, designed by P.L. AUSONIO Naval Architecture with Azimut-Benetti R&D, combines the comfort typical of a displacement hull with the performance of a planing hull and a wave piercer to improve fuel efficiency. It allows the yacht to reach high top speeds without needing particularly powerful engines, or navigate in displacement mode with a remarkable range at a cost effective speed. If we are to compare the second generation D2P_Displacement to Planing® hull with the original, we find that Azimut Grande Trideck has the same absolute consumption at all speeds above 19 knots as a yacht 3 meters shorter, 30 gross tons lighter and 35 displacement tons smaller. And, at a cruising speed of 15 knots, the Trideck actually consumes 15% less. Now, if we were to compare the 2nd gen D2P with a typical hard chine semi-planing hull then the numbers are even more staggering: at displacement speeds, the increase in fuel efficiency exceeds 40%.

 CARBON TECH GENERATION

The use of carbon fibre is a construction choice that allows volumes and surfaces to be increased in size while keeping the same weight, therefore maintaining excellent levels of dynamic stability. Azimut Grande Trideck uses pure carbon fibre laminated with vynilester resin on:

  •  Superstructure
  •   Flybridge
  •   Radar Arch
  •   Mast
  •   Hard Top
  •  Transom And Platform (Hybrid)

 HOTEL MODE

Hotel Mode is just the simplest definition of an otherwise sophisticated and ingenuous innovative way to enjoy time at the anchor at zero emission in the most peaceful silence nature can offer.

In Hotel Mode on board systems are fed by dedicated lithium ion battery packs in lieu of generators for up to 4 hours during the day and up to 8 hours at night, when the electrical power need of the yacht naturally decreases (range varies depending on weather conditions as well as personal use of electrical loads)

                                    TECHNICAL CHARACTERISTICS



MAIN TECHNICAL DATA
Length overall (incl. pulpit)38,22 m (125’ 5’’)
Beam max7,98 m (26’ 2’’)
Draft (incl. props at full load)2,05 m (6'' 9')
Displacement (at full load)approx 190 t (418874 lb)
PROJECT
Building materialCarbon fiber + GRP
Exterior styling & conceptAlberto Mancini
Interior designerAchille Salvagni Architetti
Hull designerP.L. AUSONIO Naval Architecture & Azimut Yachts R&D Dept.
KeelD2P Displacement to planing hull
BuilderAzimut Yachts



PERFORMANCE
Engines2 x 2600 mHP MTU
Maximum speed (performance test mass)up to 23 kn
Cruising speed (performance test mass)up to 19 kn
TANK CAPACITY
Fuel capacityapprox 22600 l (5970 US Gal)
Water capacityapprox 4000 l (1136 US Gal)



ACCOMMODATION



OWNER'S AND GUESTS

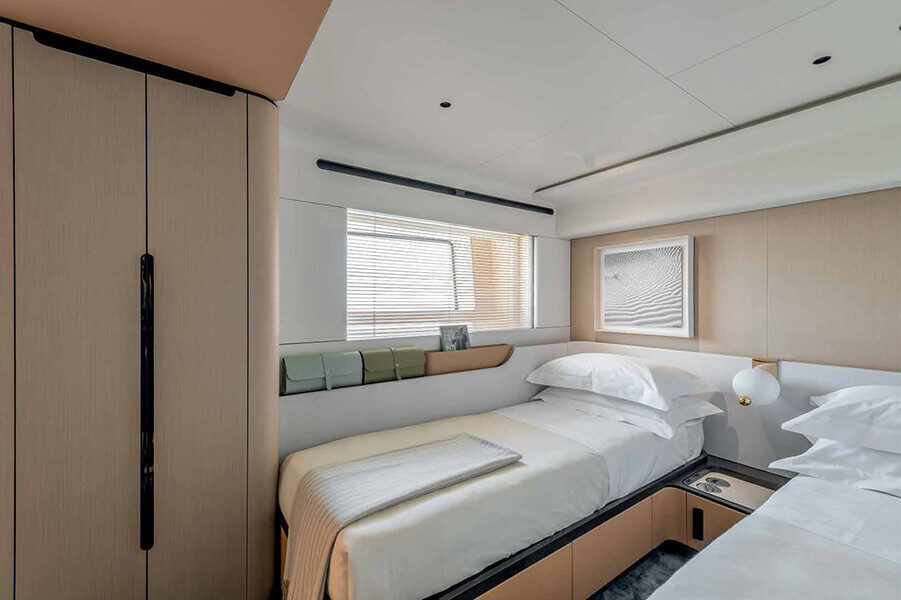

LOWER DECK: Port Vip Cabin, Port Vip Bath, Port Twin Cabin, Port,Twin Bath, Stbd Vip Cabin, Stbd Vip Bath, Stbd Twin Cabin, Stbd,Twin Bath, Lobby, Beach Area.

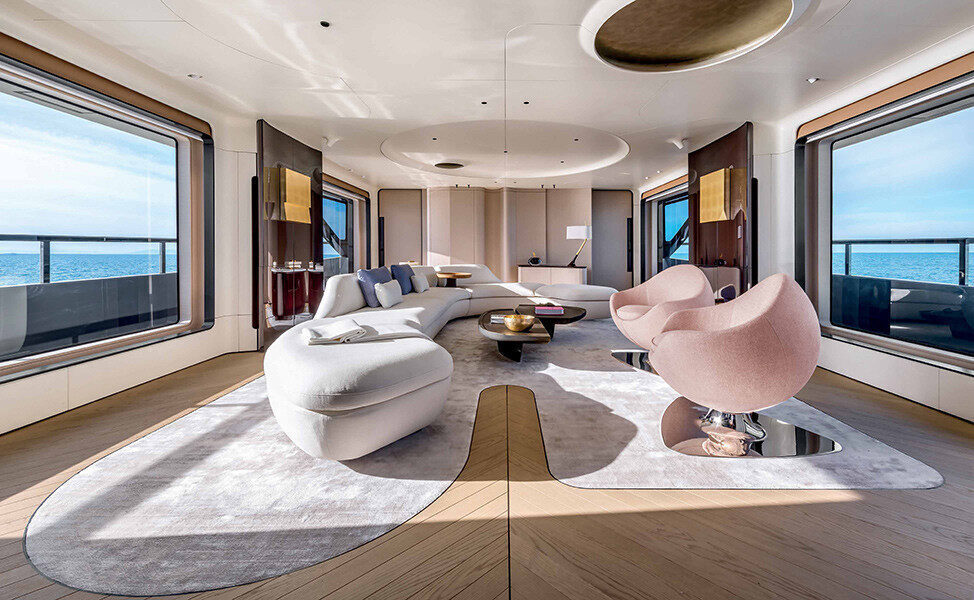

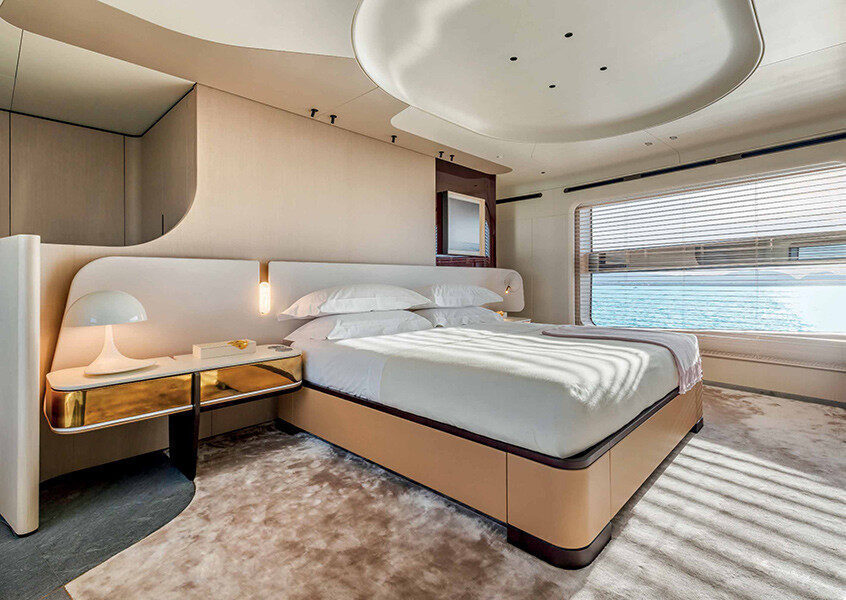

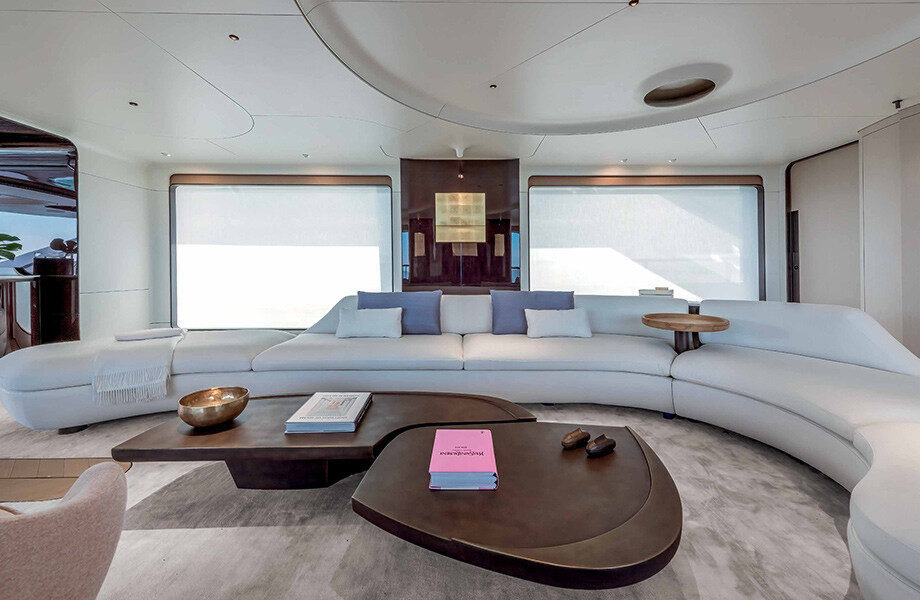

MAIN DECK: Main Saloon, Main Foyer, Powder Room, Owner’s,Cabin, Owner’s Bathroom.

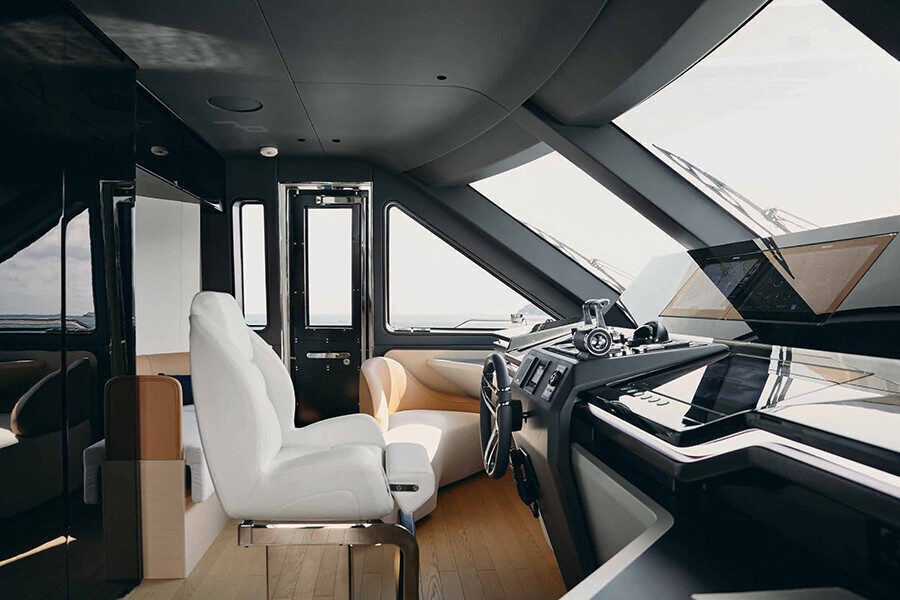

UPPER DECK: Sky lounge, Powder Room,,Wheelhouse



CREW

LOWER DECK: Port Crew Cabin 01, Port Crew Bath 01, Port Crew Mess, Starboard Crew Cabin 02, Starboard Crew Bath 02, Starboard Crew Cabin 03, Starboard Crew Bath 03, Crew Corridor.

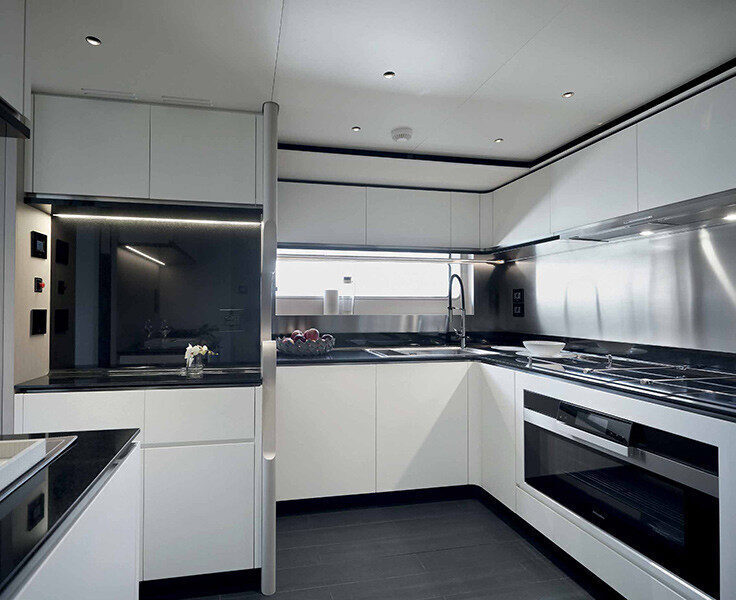

MAIN DECK: Pantry M.D., Galley and Crew Corridor.

UPPER DECK: Pantry U.D., Captain’s Cabin, Captain’s Bath.



     **All information given has been collated from respective documentation and is given in good faith.

     **The information provided is subject to inspection, survey and contract.

Read More

Characteristics

Manufacturer : Azimut
Model : Azimut Grande Trideck
Manufactured Year : 2021
No. Cabin : 7
No. Berths : 9
Length (meters) : 38.22
Width (meters) : 7.98
Draft (meters) : 2.05
Engine: in HP : 2 x 2600 mHP MTU
Engine Type : Inboard
Max Auth. Capacity: 22
Fuel Tank Capacity: 22500 ltr
Fresh Water Capacity: 22500 ltr
Black Water Capacity: 3500.00 ltr
Displacement (at full load): 190
Max. Speed (Kn) : 24.00 kn
Cruising Speed (Kn) : 21.00 kn
Building Materials : Carbon Fibre and GRP
Exterior Style & Concept: Alberto Mancini
Interior_designer: Achille Salvagni
Hull Designer : Azimut Yachts
Keel : D2P Displacement to planing hull

Listing Status

Sale Option : Negotiable
Manufactured Country: Italy
Condition: Fully Operational
Year of first Registration: 2021
Flag:   United Kingdom

Tax & Other Contingencies :
Cleared

Attributes

Features
Including Furnitures
Used only for private sail
Official papers intact
No contingencies
No conflict over ownership
No claims or suit
No liability
No hidden charges
Smooth Transfer

Location

Exact directions to the departure location will be provided after a confirmed booking.

KB Managedico-verified-1

Listing since Dec 2021

Starting: £14,430,000
